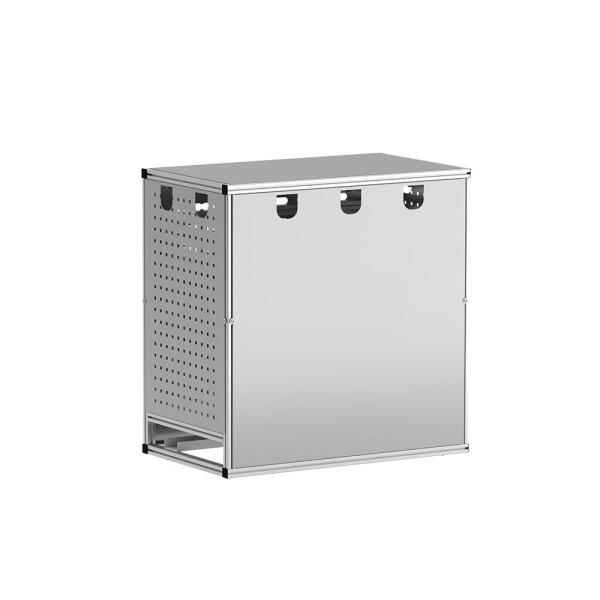

Inverter Enclosure L – Reliable Protection for Your PV Technology
The Inverter Enclosure L offers a sophisticated protection solution for inverters, hybrid storage systems, and other PV components. The closed aluminum housing with powder-coated front panels reliably protects sensitive electronics from weather conditions, while the perforated side panels ensure optimal ventilation.
Compact Dimensions with an Intelligent Space Concept
With external dimensions of 1,170 x 700 mm base area and 1,200 mm height, the Enclosure L offers sufficient space for standard inverters up to medium size. The usable interior space measures 1,090 x 620 x 1,120 mm and allows for the installation of common devices including cabling. Weighing only 43 kg, the enclosure remains easy to handle.
Flexible Mounting Systems
Three height-adjustable mounting rails made of aluminum profiles allow for individual positioning of components. Each rail supports up to 80 kg, so even heavy battery storage systems can be securely mounted. The corner bracket T-slot nuts enable tool-assisted height adjustment with the included Allen key. The closed front panels can be opened without tools using star knobs and provide protected access to the devices.
Modular Expansion System

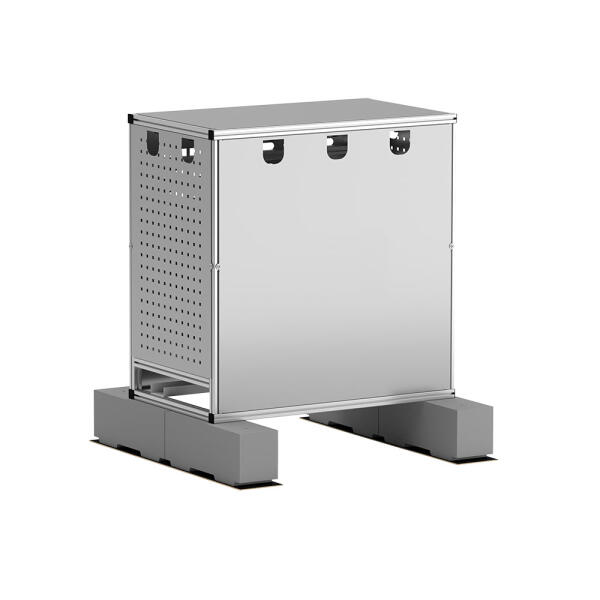

The L-shaped enclosure is designed as a base unit and can be horizontally extended with identical expansion modules. The connection is made using the included profile connectors and T-slot nuts. Mounting on separately available concrete bases (600 x 220 x 180 mm) guarantees a secure stand. All mounting brackets, screws, and assembly tools are included.
The Inverter Enclosure L at a glance:
