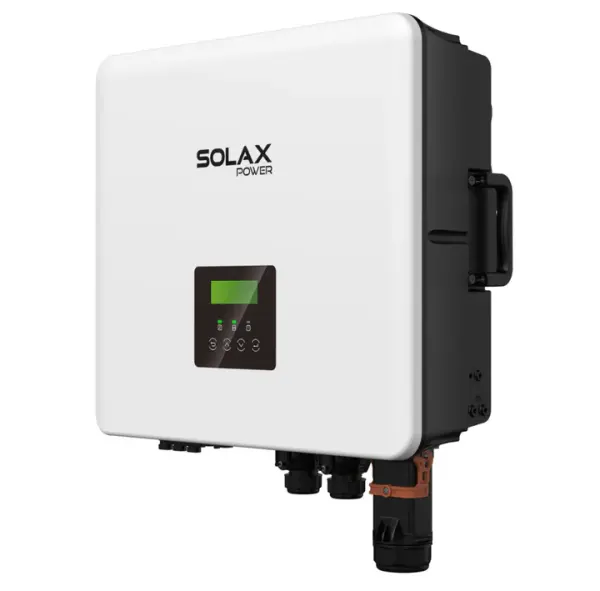

Premium Energy Management with the X3-HYB-6.0-P
The SolaX X3-HYB-6.0-P represents the premium class of three-phase hybrid technology. With 6 kW of nominal output power and the capacity for 12 kWp PV arrays, this inverter combines maximum performance with the most advanced features for demanding energy systems.
Advanced MPPT Performance
The two sophisticated MPPT trackers, each with 20 A input current, effortlessly handle complex roof configurations. The operating voltage range of 110-950 V enables optimal utilization of various module technologies and interconnections for maximum system efficiency.
Dual Battery System with 2-in-1 Technology
The innovative battery management system supports both separate battery installations (25 A per connection) and combined systems up to 50 A. The 2-in-1 function enables flexible storage expansion and optimal load balancing for various application scenarios.
VPP Integration and Smart Grid Readiness
As a VPP-ready system, the X3-HYB-6.0-P supports various protocols such as OpenADR, IEEE 2030.5, and FCAS for participation in virtual power plants. This future technology opens up new revenue streams through power trading and grid stabilization services.
Professional Safety Features
Comprehensive protection functions, including optional AFCI protection, integrated Type II SPDs on the AC and DC sides, and advanced insulation monitoring, ensure maximum operational reliability. The rapid shutdown function provides additional protection for the installer and operator.
Micro-Grid and Generator Compatibility
Specialized operating modes for micro-grid applications and generator integration make the X3-HYB-6.0-P the ideal solution for off-grid installations or backup systems. The elegant cable cover ensures a professional appearance for all installations.
The SolaX X3-HYB-6.0-P at a glance:
